Factory Price Pulp Egg Tray Molding Machine Industrial Tray Making Machine
Paper Egg Tray Machine is used to process raw material waste paper into egg tray/carton/box, bottle holder, fruit tray and shoe cover etc. Whole production will be finished by one production line. In this production line, their main engine has three types: reciprocating type, Tumblet Type and rotation typewhich working method is different. Usually rotation type machine capacity is bigger.
Flow Chart:
1. Pulping system-------2. Forming system-------3. Drying system
Pulping system: Hydrapulper ,Pulp pump ,Air compressor,agitator,Self priming pump,pulping machine.
Forming system: Full automatic egg tray forming machine, Vacuum pump , High pressure washer, Negative pressure tank , mould, Transfer mould, baler .
Drying system: There are 2 kinds of drying system. One is metal, the other is brick. The conveyor plate
can be one layer and multi-layer, direct combustion hot air circulation. Using the imported or joint venture brand burner (domestic uses the stove bar), equipped with an automatic control cabinet.
Technical data
| Item | Information | Notes |
| Output Range | 4000pcs/h | 30 packed egg tray(60~80g) |
| Workshop recommendation | >=525m2 | Length>=35m;width>=15m;height>=6m; (It could be adjusted according to the user's existing workshop) |
| Type of Material | Waster paper | News paper/Carton /Paper box/Books/ Corrugated paper etc. |
| Material consumption | 250~280kg/h | 30 packed egg tray (65~70g) |
| Water consumption | 650-1000kg/h | 30 packed egg tray (65~70g) |
| Electricity consumption | 110kw | Full throttle operation |
| Fuel consumption (approximately) | LPG 25~32M3/h | Choose one from the three types of fuel |
| natural gas 75~95 M3/h |
| diesel 60~80kg/h |
| Operator Required | 4~6 people/shift | 24 hours ,3 shift |
| Container requirement for Transport | 4 of 40’HQ container | Whole production line |
Feature of egg Tray Production Line
| 1 | High automation, low labor cost |
| 2 | Low production cost |
| 3 | Energy saving(by 30%-50% compared with other manufacturer) |
| 4 | Water saving(complete water treatment system equipped) |
| 5 | Efficient Multilayer dryer, saving space(by 33% compared with traditional dryer) |
| 6 | Stable final product quality(same weight, same dimension, strong and good look) |
The specifications of the pulp molding production lines are divided due to different customer preferences, market demands, labor cost, energy cost, field availability and climate in different areas, considering this, our company developed many pulp molding production lines in different specifications to meet the customer's requirements:
HR-1000S, HR-1500S, HRZ-2000M, HRZ-3000M, HRZ-4000M, HRZ-6000M, HRD-12000M.
The above-mentioned production lines are suitable for the following products: Egg tray (30-cell, 20-cell etc.), egg box/carton
(6-cell, 10-cell, 12-cell, 15-cell, 18-cell etc.), fruit tray (for apple, tomato, pear and etc.), cup carrier (4 packed and 2 packed),
some medical-care products and fixed shape (the design doesn't change frequently) pulp molding products with large quantity.
| For 30-cell egg tray as the example: |
| Model | Throughput | Drying System | Workshop Space | Rated Power |
| HR-1000S | 1000pcs/h | Single-Layer Metal | 40m*10m*6m | 88KW |
| HR-1500S | 1500pcs/h | Single-Layer Metal | 42m*10m*6m | 122KW |
| HRZ-2000M | 2000pcs/h | Multi Layers Mental | 30m*10m*6m | 160KW |
| HRZ-3000M | 3000pcs/h | Multi Layers Mental | 30m*10m*6m | 187KW |
| HRZ-4000M | 4000pcs/h | Multi Layers Mental | 35m*10m*6m | 206KW |
| HRZ-6000M | 6000pcs/h | Multi Layers Mental | 38m*15m*6m | 327KW |
| HRP-8000M | 8000pcs/h | Multi Layers Mental | 35m*20m*6m | 470KW |
| HRD-12000M | 12000pcs/h | Multi Layers Mental | 45m*20m*8m | 477KW |
- Exact data are subject to final contract.
|
Product Tags:
|
|

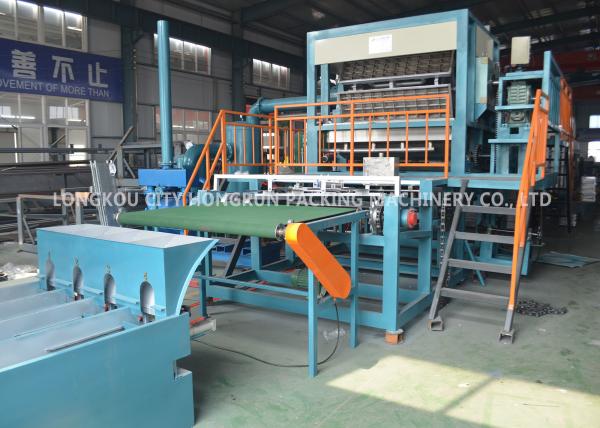

Efficient Pulp Egg Tray Molding Machine / Industrial Apple Tray Making Machine Images
|
